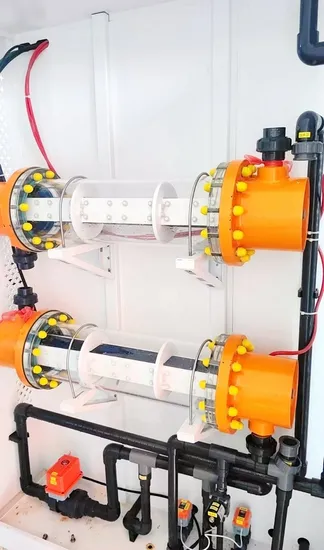

5000g Sodium Hypochlorite Generators, Reverse Polarity Is Not Supported

• Overview
• Detailed Photos
• Product Description
• Product Parameters
• Installation Instructions
• Packaging & Shipping
• Certifications
• Our Advantages
• FAQ

Overview

Basic Info.

Model NO.	SHG series
Type	Microfiltration Machine
Method	Chemical Treatment
Usage	Industrial, Home, Agriculture, Hospital, Ballast Water Treatment
Weight	48kg
Maximum Inflow Rate	650L~1000L
Working Current	650A~800A
Operating Voltage	28V~32V
Material	Titanium Ruthenium-Iridium
Naclo Production	5000g/Hour
Support Customization	Yes
Low MOQ	1 Set
Lead Time	5-7 Days
Available Chlorine	6500ppm
Transport Package	Wooden Package, Carton Package
Specification	1000g sodium hypochlorite generator
Trademark	CHB or customization
Origin	China
Production Capacity	20000PCS/Month

Packaging & Delivery

Package Size180.00cm * 60.00cm * 60.00cm Package Gross Weight55.000kg

Product Description

Working Principle

Hypochlorite generators operate based on the principle of electrolysis of saltwater. Specifically, they utilize a silicon rectifier to apply direct current (DC) across the anode and cathode within an electrolysis cell. This process causes the sodium chloride (NaCl) and water molecules in the saltwater to undergo chemical reactions. Chloride ions (Cl-) at the anode lose electrons and are oxidized into chlorine gas (Cl2), while hydrogen ions (H+) at the cathode gain electrons and are reduced into hydrogen gas (H2). Subsequently, the generated chlorine gas reacts with the sodium hydroxide (NaOH) solution formed during electrolysis to produce hypochlorite sodium (NaClO) and sodium chloride (NaCl). By adjusting the electrolysis current, the device can precisely control the amount of hypochlorite produced, which is then distributed through a water injector or metering pump to areas requiring disinfection.

Application Areas

Hypochlorite generators find widespread application due to the potent oxidizing, bleaching, and disinfecting properties of hypochlorite sodium (NaClO) solution:

1. Disinfection & Sterilization: Commonly used as a disinfectant for drinking water, swimming pool water, hospital wastewater, household utensils, fruits, vegetables, and more. It's also effective in sanitizing public spaces such as restaurants, hotels, and spas.

2. Wastewater Treatment: In wastewater treatment, hypochlorite oxidizes harmful substances, such as cyanide, reducing biological oxygen demand (BOD) and removing color and odor.

3. Bleaching & Manufacturing: Serves as a vital bleaching agent in industries like paper, textile dyeing, and printing. It's also used to produce industrial, domestic, and medical-grade bleach and disinfectants.

4. Other Applications: Functions as a rust inhibitor in metal heat treatment, as a disinfectant in the medical industry, for controlling rice blast disease in agriculture, and as a solvent, catalyst, and chlorinating agent in organic synthesis.

Importance

The importance of hypochlorite generators lies in several key aspects:

1. Environmental Friendliness: Using salt and water as raw materials, they produce a disinfectant that is non-toxic, odorless, and leaves no residue, making it environmentally benign. Their effectiveness also reduces the need for chemical disinfectants, lowering environmental stress.

2. Efficiency: Hypochlorite generators rapidly produce large quantities of disinfectant, meeting large-scale disinfection demands. The high solubility of hypochlorite ensures even distribution in water, enhancing disinfection efficiency.

3. Cost-Effectiveness: Compared to traditional chemical disinfectants, they significantly lower disinfection costs. Consuming only small amounts of salt and electricity, they offer low operational expenses. Additionally, they eliminate the hassle of purchasing, storing, and transporting chemicals.

4. Safety: Automated control systems make hypochlorite generators easy to operate and maintain. The stable hypochlorite solution has low volatility, mitigating the risk of chlorine gas leaks and reducing harm to humans and the environment.

In summary, hypochlorite generators play a vital role across multiple sectors by offering environmentally friendly, efficient, cost-effective, and safe disinfection solutions, contributing to cleaner and healthier environments.

Applications:

1, sanitary disinfection: swimming pool disinfection, tableware disinfection, sanitary food disinfection and other directly related to human health sodium hypochlorite generator.

2, environmental protection, mainly hospital sewage treatment, various industrial wastewater treatment with sodium hypochlorite generator.

Our factory located in Baoji, China's titanium industry base, with a strong R & D team and production capacity. Efficient to provide customers with customized services.

Question 1: We are very satisfied with this product. Can I customize my logo on the product?
Answer 1: Of course. We offer customized services.

Question 2: I want to adjust the size of this product to meet our needs, can you meet it?
Answer 2: Yes, this exhibit is our standard, it's only for reference. Please provide your specific requirements or drawings, we will customize for you.

Question 3: What's the lead time for this product?
Answer 3: 3-5days.

Question 4: What's the lead time for customization?
Answer 4: Sample delivery time of fixed products: 3-5days. Mass production delivery time: 21-30 days.

Detailed Photos Product Description Product Parameters

Shell + electrode combination weight	48Kg
Working current	650~800A
Operating voltage	28~32V
Flow per hour	650L~1000L
the amount of chlorine produced per hour	5000g
